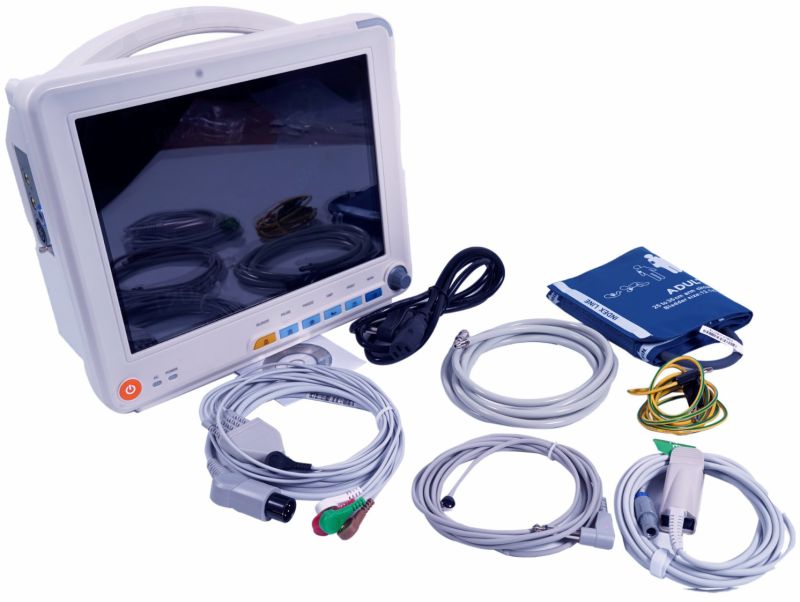

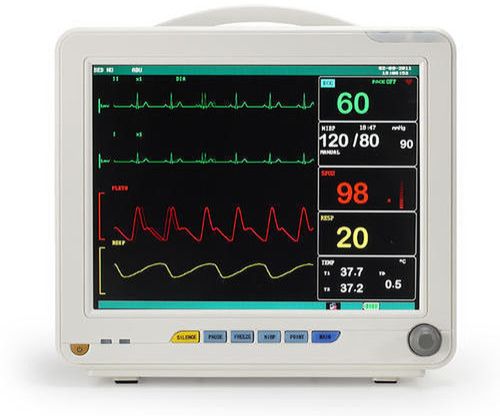

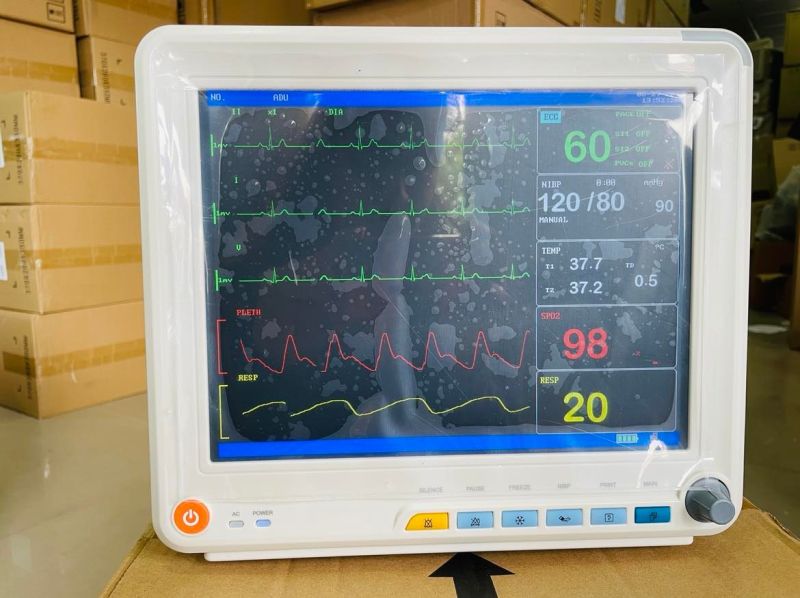

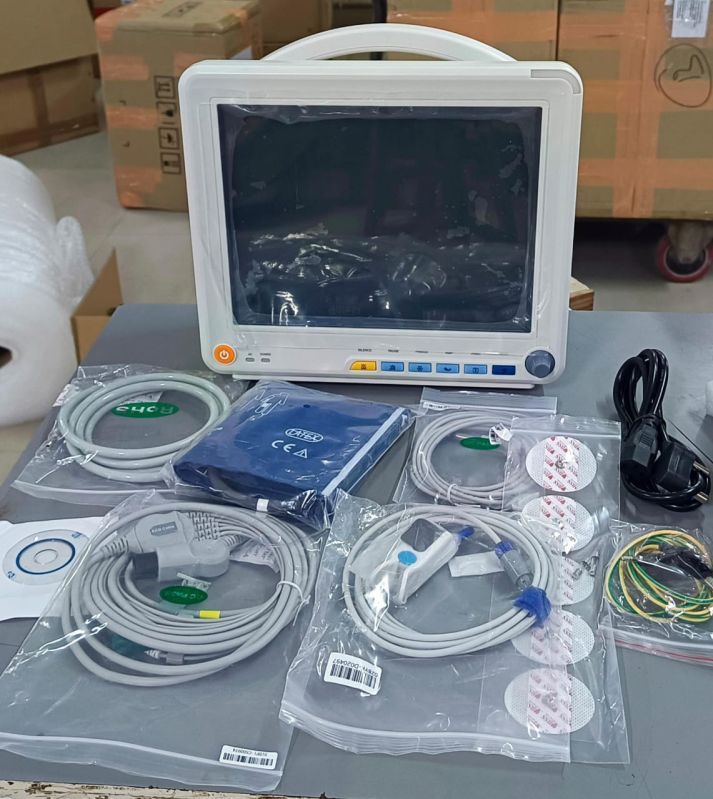

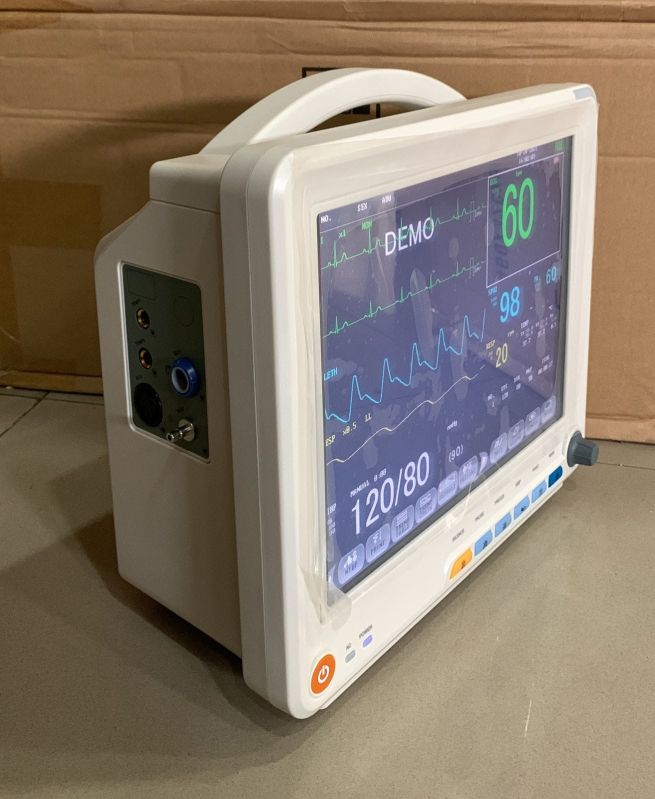

Multi Parameter Patient Monitor

To fulfill the diverse requirements of our valued clients, we are offering Multipara Monitor. The offered monitor is designed by our professionals utilizing the quality assured material and technically advanced tools in compliance with the set norms of the industry. This monitor has built-in rechargeable battery for uninterrupted monitoring. Our monitor can be availed from us at market leading rates in a promised time frame.

Features:

• Dimensional accuracy
• audible and visual alarm
• Built-in rechargeable battery

Other Details:

• Network function: connect to central monitor system, view bed, and software updating.
• Alarm Yes, audible and visual alarm, alarm events review
• ECG waveforms of 7-leads display on the same screen
• 72-hours graphic and tabular trends of all parameters
• 500 NIBP measurement data can be stored and recall
• Arithmetic analysis and S-T segment analysis
• Suitable for adult, pediatric and neonatal patient
• Built-in rechargeable battery for uninterrupted monitoring.
• The anti-high frequency surgical unit, defibrillation-proof (a requirement for special leads).
• Optional: RESP, TEMP., EtCO2, IBP, CMS, and printer.

Technical specifications:

NIBP:

• Method Oscillometry
• Modes Manual / Auto / Continuous
• Auto Measure time Adjustable
• Measurement range 10-270mmHg

SPO2:

• Measurement range 0-100%
• Accuracy 70-100%, ±2% 0-69%, unspecified

Respiration:

• Method RA-LL impedance
• Range Adult: 0-120rpm; pediatric/neonatal: 0-150rpm
• Apnea alarm yes

Optional:

• ETCO2, IBP, Printer & Networking

ECG:

• Heart rate range
• Adult: 15-300bpm
• ped/Neo 15-300bpm
• ECG waveform 2 channels
• Accuracy ±1 bpm or±1 %, Whichever is greater
• S-T segment detection: Measurement range 0.2mv~2.0mv

Pulse Rate:

• Range 20-254pm
• Accuracy ±3bpm

Temperature:

• Range 0-50 °C
• Accuracy ±0.1 °C
